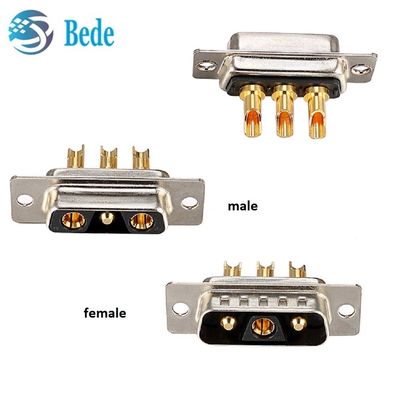

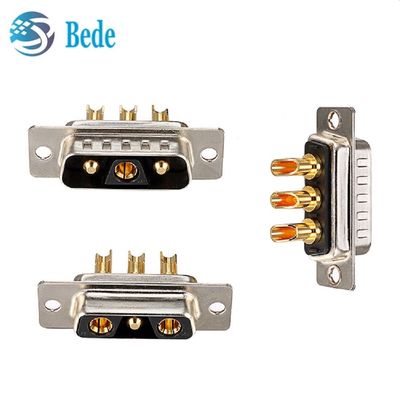

D-Sub 3W3 coaxial power connector male and female combo high current connectors
Description
3V3 female d-sub coaxial power connector, male and female combo type high current connectors, machined phosphor copper with gold over nickel plated, steel-tin/nickel-plated shell, high temperature white insulator (thermoplastic type PCT UL94V-0), by preloaded fixed contacts and brackets on the PCB bord, the combination D-sub connectors make the signal, power, high voltage running between power and device.
Electrical Characteristics
Size of 3W3 coaxial power connector
Please refer to the following drawings for dimensions. If more details are needed, please feel free to contact us
How to Buy
We provide this product with different rated currents for different usage scenarios. Please let us know the part number and quantity. We will wholeheartedly provide you with the best products and services.
| Part number | A | B | Wire Gauge/AWG | Rated current/A |
| DB3W3-1 | 2.5 | 4.5 | 14~16 | 10 |
| DB3W3-2 | 3.6 | 5.0 | 10~12 | 20 |
| DB3W3-3 | 4.4 | 5.5 | 8~10 | 30 |
| DB3W3-4 | 5.5 | 5.5 | 6~8 | 40 |
