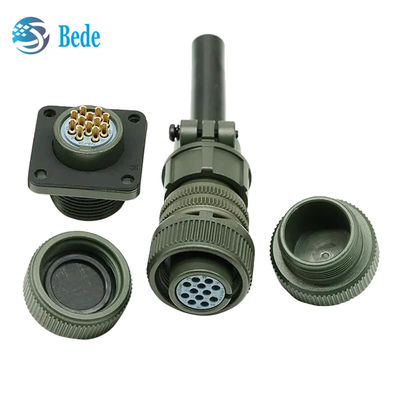

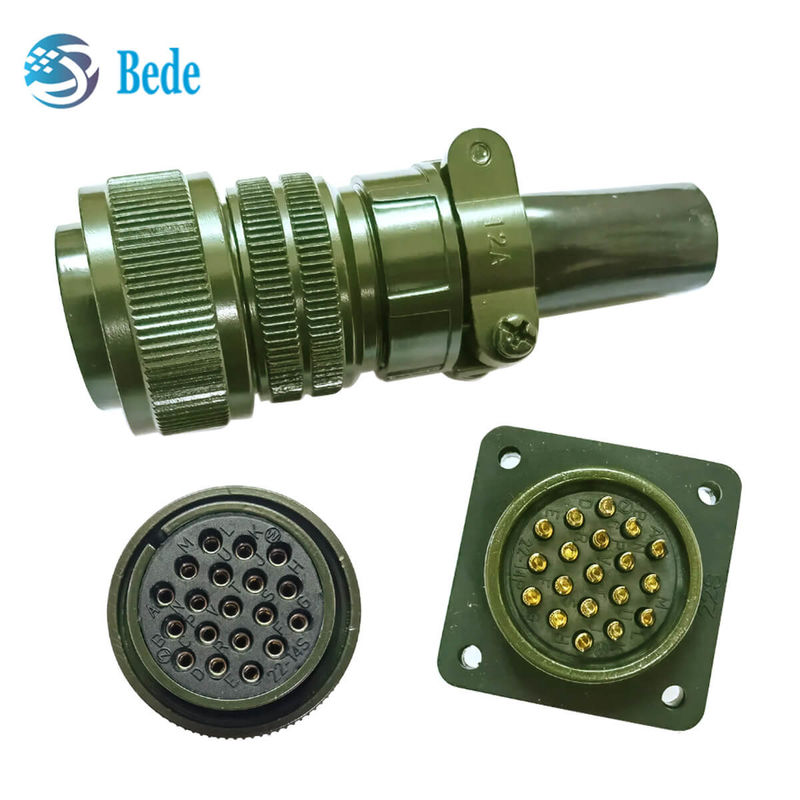

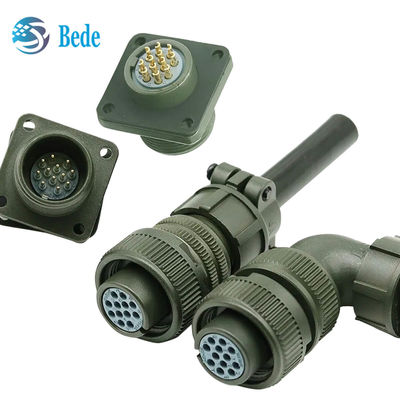

MIL-C-5015-MS3106 Straight Plug Military Circular Connectors IP68 Waterproof
What's MIL-C-5015 connector
Mil-C-5015 series connectors comply with the US harsh environment connector Mil-C-5015 standard (GJB600), with high-strength aluminum alloy shell, synthetic rubber insulator, threaded connection, alternate insertion positioning, welding and crimping terminals,simple and practical design, widely used in industrial machinery and equipment, harsh environment connectors, defense equipment, ships, automotive industry, instrumentation, servo motors, etc. This series connectors from BEDE can replace similar products in Europe and the United States, such as Amphenol, and with more competitive prices.
Class designations and brief descriptions are listed below:
A – Solid Shell – for general, non-environmental applications.
C – Pressurized – for use on pressurized bulkheads or pressure barriers; limits air leakage regardless of type and class of plug mated with them.
E/F –Environmental Resisting with Strain Relief –designed for applications where the connector will be exposed to moisture, vibration, and rapid changes in pressure and temperature.
R – Lightweight Environmental Resisting – shorter in length and lighter in weight than the E and F classes, the MS-R offers a high degree of reliability under adverse conditions: recommended for new design applications.
For any enquiries, please inform us of the product number and quantity required as shown in the figure below, and we will provide you with the best price and service

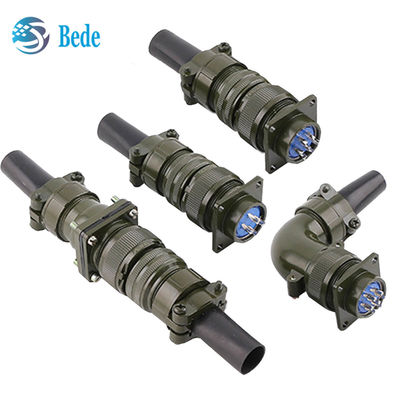

What the 5015 Connector type code Means
MIL-C-5015-MS3100: Wall mounting Receptacle with square flange
MIL-C-5015-MS3101: Cable connecting Plug
MIL-C-5015-MS3102: Box mounting Receptacle with square flange

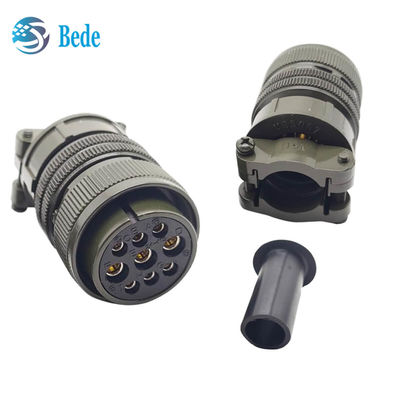

MIL-C-5015-MS3106: Straight plug
MIL-C-5015-MS3108: 90° angle Plug
Size of MIL-C-5015-3106
| Shell size | ΦA | ΦB | ΦC | D | E | M thread | N thread |
| 8S | 21.43 | 9.3 | 6.41 | 13.49 | 37.3 | 1/2-28 UNEF-2B | 1/2-28 NUEF-2A |
| 10S | 24.61 | 11.17 | 8.21 | 13.49 | 38.88 | 5//8-24 UNEF-2B | 1/2-28 NUEF-2A |
| 10SL | 24.61 | 11.33 | 9.6 | 13.49 | 38.88 | 5/8-24 UNEF-2B | 5/8-24 NUEF-2A |
| 12S | 26.97 | 14.10 | 11.43 | 13.49 | 42.87 | 3/4-20 UNEF-2B | 5/8-24 NUEF-2A |
|
12 |
26.97 | 14.10 | 11.43 | 18.26 | 52.37 | 3/4-20 UNEF-2B | 5/8-24 NUEF-2A |
| 14S | 29.36 | 17.15 | 13.37 | 13.49 | 42.87 | 7/8-20 UNEF-2B | 3/4-20 NUEF-2A |
| 14 | 29.36 | 17.15 | 13.37 | 18.26 | 52.37 | 7/8-20 UNEF-2B | 3/4-20 NUEF-2A |
| 16S | 31.75 | 20.45 | 16.54 | 13.49 | 42.87 | 1-20 UNEF-2B | 7/8-20 NUEF-2A |
| 16 | 31.75 | 20.45 | 16.54 | 18.26 | 52.37 | 1-20 UNEF-2B | 7/8-20 NUEF-2A |
| 18 | 34.13 | 23.62 | 19.72 | 18.26 | 52.37 | 11/4-18 UNEF-2B | 1-20 NUEF-2A |
| 20 | 37.31 | 26.67 | 23.68 | 18.26 | 55.57 | 11/4-18 UNEF-2B | 13/16-18 NUEF-2A |
| 22 | 40.48 | 29.85 | 26.07 | 18.26 | 55.57 | 13/8-18 UNEF-2B | 13/16-18 NUEF-2A |
| 24 | 43.66 | 33.02 | 29.24 | 18.26 | 58.72 | 11/2-18 UNEF-2B | 17/16-18 NUEF-2A |
| 28 | 50.01 | 38.61 | 34.80 | 18.26 | 58.72 | 13/4-18 UNEF-2B | 17/16-18 NUEF-2A |
Insert arrangement of MIL-C-5015 connector
Follow picture shows the Insert arrangement / hole group row code number of shell size 20,from the direction of pin inserting. Please contact us if you need more informations.
