| กันน้ำ: | IP67 | จัดอันดับปัจจุบัน: | 3เอ |
|---|---|---|---|
| แรงดันไฟฟ้าที่ได้รับการจัดอันดับ: | 200V | ทนต่อแรงดันไฟฟ้า: | 1500V |
| ความต้านทานของฉนวน: | 1500MΩ | ต้านทานการติดต่อ: | 0.003Ω |
| เน้น: | IP67 Gx12 Aviation Connector,Waterproof Gx12 Aviation Connector,gx12 2 pin connector |
||

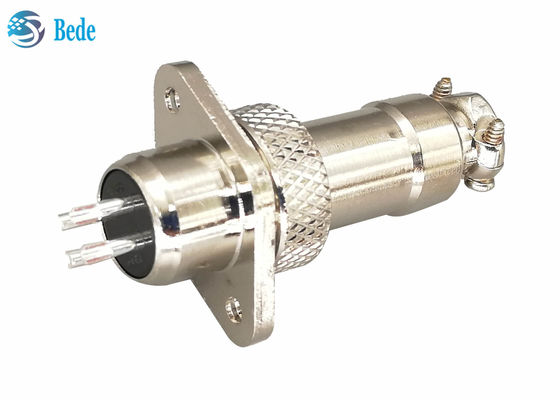

Waterproof IP67 Gx12 Aviation Connector Docking Style 2 Pin 3A 200V
Structure
1. Cable protection cover, rubber material, waterproof
2. washeer,stainless steel
3. nut, Locking cable and protective cover, waterproof
4. housing for female connector,zinc alloy with neckel plated,
5. insulator, bakelite material, black color
6. Waterproof O-ring, rubber material, choose need or not the waterproof cover as required
7. housing for male connector,zinc alloy with neckel plated,
8. Male connector,zinc alloy with neckel plated,
9. contact pins,brass with gold plated
Description
1. waterproof : IP 67
2.wiring type: welding
3. Male and female kits,
4.applicable temperature: -50℃ ~ +70℃
5.factory outlet, excellent service, competitive price
Similar products
GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and right angle pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type
Feature Of Aviation Connector
1. Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
5. High temperature 260 degree ,solder reflowing
