| หมุด: | 5/6/7 | วัสดุ: | โลหะผสมสังกะสี |
|---|---|---|---|
| หลุมติดตั้ง: | M12 | น้ำหนัก: | 40 กรัม |
| ประเภทสายไฟ: | การเชื่อม | ประเภทเชื่อมต่อ: | ชายและหญิง |
| เน้น: | 7 Pin Gx12 Aviation Connector,Zinc Alloy Gx12 Aviation Connector,7 pin gx12 connector |
||

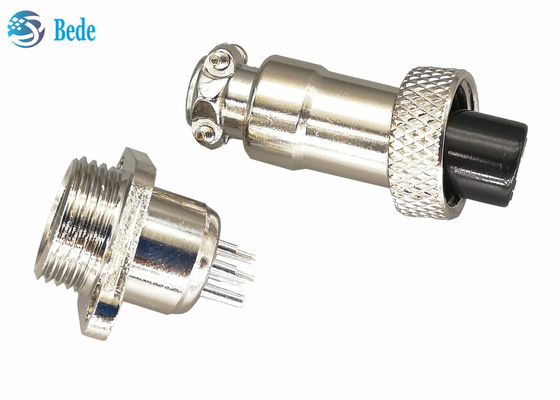

Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets
Structure
1. main body, zinc alloy
2. nut, fix the male and female after connection
3.Insulator, bakelite material
4.screw hole in flange, diameter 2.5mm
5, male connector plug, zinc alloy material
6,contact pins, brass material with silver plated
Electrical data
| Pins | rated current | rated voltage | Withstand voltage | Contact resistance | suit temperature |
| 5 | 3A | 150V | AC 1500V*1min | 0.003Ω | -50℃~ +70℃ |
| 6 | 3A | 150V | AC 1500V*1min | 0.003Ω | |
| 7 | 3A | 150V | AC 1500V*1min | 0.003Ω |
Similar products
GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and elbow pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type, GX12 docking type waterproof
Feature Of Aviation Connector
1. Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
5. High temperature 260 degree ,solder reflowing
