| น้ำหนักหน่วย: | 135 กรัม | หมุด: | 6 |
|---|---|---|---|
| จัดอันดับปัจจุบัน: | 5/25A | แรงดันไฟฟ้าที่ได้รับการจัดอันดับ: | 500V |
| อุณหภูมิที่ใช้บังคับ: | -50~+85℃ | ความต้านทานของฉนวน: | 2000MΩ |
| เน้น: | WS20 6 Pin Circular Connectors,WS20 circular power connector,6Pin Aviation docking connectors |
||

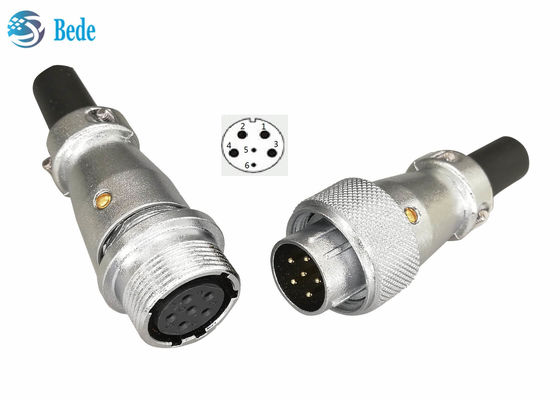

WS20 6 Pin Circular Connector Cable To Cable Aviation connector Docking Connectors

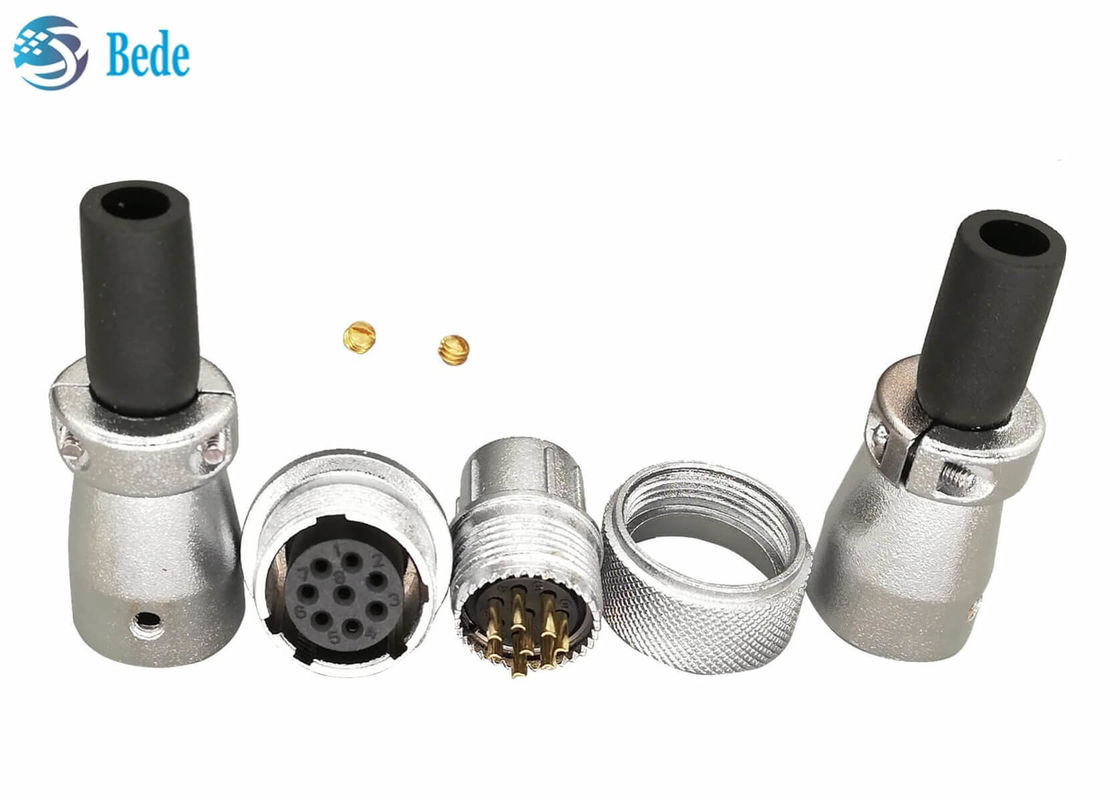

Structure
1.Housing of male connector with rubber cable protective sleeve, housing material is chrome plated zinc alloy
2.Male connector, housing material is chrome plated zinc alloy, contact pin is brass with gold plated
3.nut for fixing male and female after connection
4.female connector, pins location as pictrue show, 1 2 3 4 pins rated current 25A, wire gauge 11AWG, contact resistance 1mΩ/pin; 5 6 pin rated current 5A, wire gauge 18AWG, contact resistance 5mΩ/pin;
5.Sleeve of female connector, material is chrome plated zinc alloy
6.Housing of female connector with rubber cable protective sleeve, housing material is chrome plated zinc alloy
7.brass nut for fixing connetors
Product Size
Female connector: ΦD=M22 L=52mm Φd max=11.6mm
Male connector: ΦD=25.8mm L=49.5mm Φd max=11.6mm
Similar product
This page is about WS20, WS16, WS24, WS28 on sales also, the series also includes panel mount mode, square flange mode, please feel free to contact us if you are interested
