| วัสดุเปลือก: | โลหะผสมสังกะสีชุบ | วัสดุฉนวน: | คนเลี้ยงสัตว์ |
|---|---|---|---|
| หมุดติดต่อ: | ทองเหลืองชุบเงิน | อุณหภูมิแอปพลิเคชัน: | -50 ~ +70 ℃ |
| หลุมติดตั้ง: | 16 มม. | จัดอันดับปัจจุบัน: | 4 ~ 7 ก |
| เน้น: | Panel Gx16 Aviation Connector,Gx16 Aviation Connector,Gx16 aviation plug 2 pin |
||

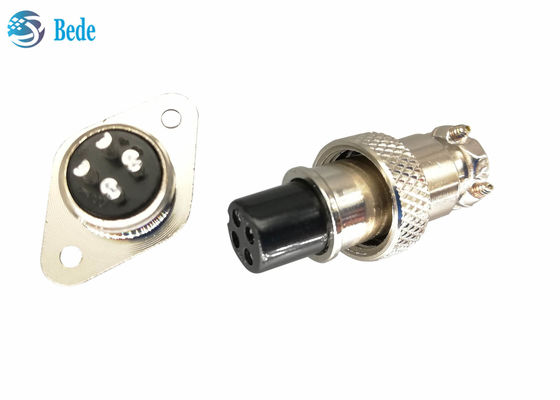

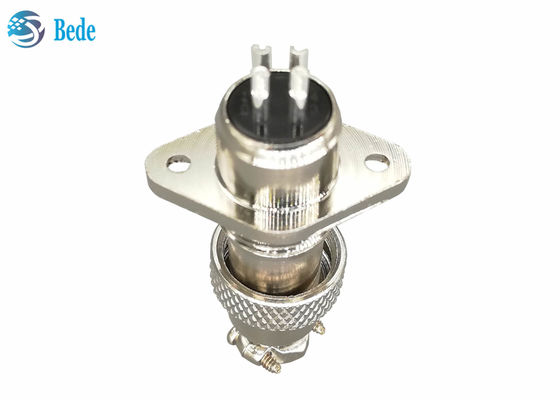

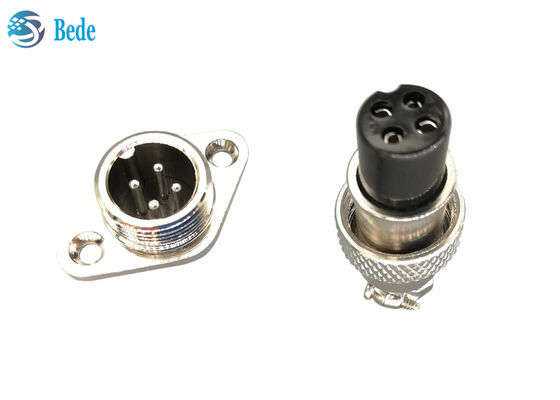

GX16 Aviation Connector Panel Mounting Connector Sets With Rhombus Flange 2~10 Pins
Product structure
1.Contact pins, brass material with silver plated,
2.panel mounting end, male connector(the end be female connector is available, please notify us when you place an order)
3. Insulators,female connector, bakelite material,
4.Nut for fixing male and female connector after connection
5.Housing of female connector, Zinc alloy materials with zinc plated
Electrical data
| pins | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Rated current | 7A | 7A | 7A | 7A | 4A | 4A | 4A | 4A | 4A |
| working voltage | 200V | 200V | 200V | 200V | 200V | 200V | 200V | 200V | 200V |
| Insulation resistance | 1500V | 1500V | 1500V | 1500V | 1500V | 2000V | 2000V | 2000V | 2000V |
| Contact resistance | 3mΩ | 5mΩ | |||||||
| Contact hole size | 2.45mm | 2.45mm | 2.45mm | 2mm | 1.15mm | 1.15mm | 1.15mm | 1.15mm | 1.15mm |
All familier
About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
1.Panel mounting model-- front mounting
2.Cable docking model
3.Rear mounting model
4.Panel mounting model with round flange
5.Panel mounting model with square flange
6.Panel mounting model with rhombus flange
7.PCB welding model with elbow pins
8.PCB welding model with straight pins
9.Panel mounting model with right angle
10.Waterproof cable docking model
11.Waterproof panel mount model
