| จัดอันดับปัจจุบัน: | 25เอ | แรงดันไฟฟ้าย้อนกลับ: | 500V |
|---|---|---|---|
| น้ำหนัก: | 0.105กก | อุณหภูมิที่ใช้บังคับ: | -40~+85℃ |
| ความต้านทานของฉนวน: | 2000MΩ | ต้านทานการติดต่อ: | 1mΩ |
| เน้น: | 500V Square Flange Circular Connectors,Circular Connectors 500V 25A,Square Flange 4 pin circular connector |
||

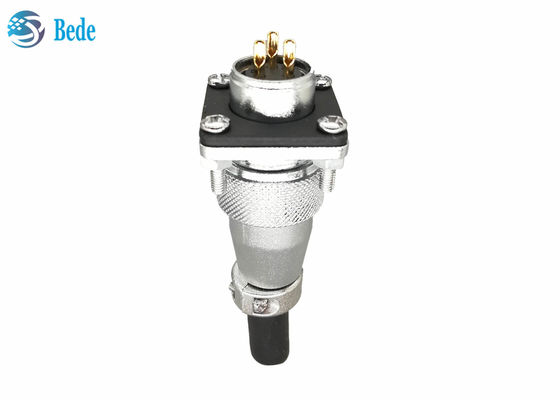

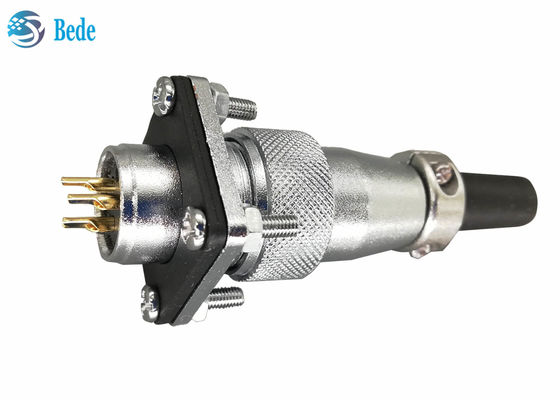

WS20 Circular Connectors with square flange and dust cover 2 3 4 pin 500V 25A
Product structure

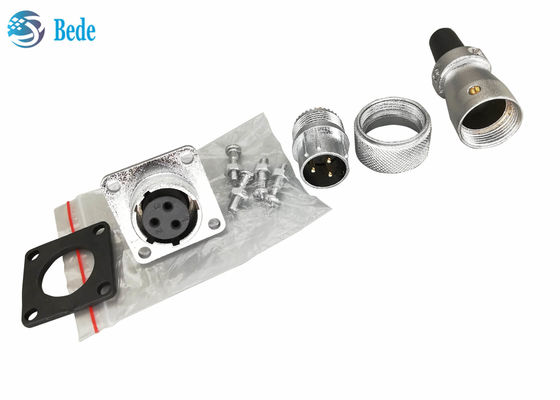

1. Rubber pads and dust cover, two models as shown in the figure below, with or without dust cover as required
2. Housing for panel mounting end, zinc alloy with chrome plated,
3. Housing for wiring end,zinc alloy with chrome plated,
4. Nut,zinc alloy with chrome plated, used for fixing male and female after connection
5. Screws, washers and nuts, stainless steel material, used for panle mounting
6. Housing for wire,zinc alloy with chrome plated,
7. Cable protection cover, rubber material,
8. Insulator, PPS engineering plastic
9. Contact pins, brass material with gold plated
Quick detail
Product Size
Wiring end: ΦD=25.8mm L=49.5mm Φdmax=11.6mm
Panel mounting end: Φd1=M20 D=M22 L=14mm L1=28mm L2=23mm
B=22mm Φd=20.5mm b=22mm Φ=3.2mm
Electrical data
| pin | Rated current | Rated voltage | Withstand voltage | Contact resistance | Insulation resistance | wire size |
| 2 3 4pin | 25A | 500V | AC1500V*1min | 0.001Ω | 2000MΩ | 11AWG |
