| เพศ: | ชายและหญิง | แอปพลิเคชัน: | ยานยนต์, พลังงาน, การทหาร, การบิน |
|---|---|---|---|
| สี: | โลหะ | รูปร่าง: | กลม |
| อุณหภูมิแวดล้อม: | -40°C~+85°C | เข็มหมุด: | 2~9 |
| วัสดุ: | โลหะผสมสังกะสี | จัดอันดับปัจจุบัน: | 5~10A |
| เน้น: | 2 pin aviation connector GX20,2 pin aviation connector M19,GX20 5 pin aviation connector |
||

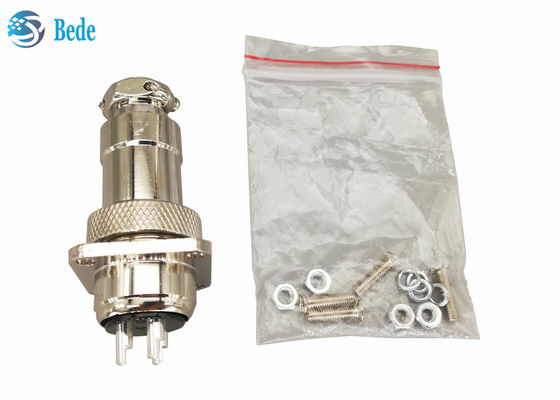

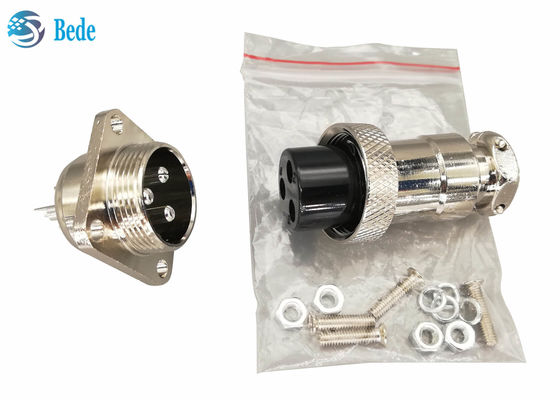

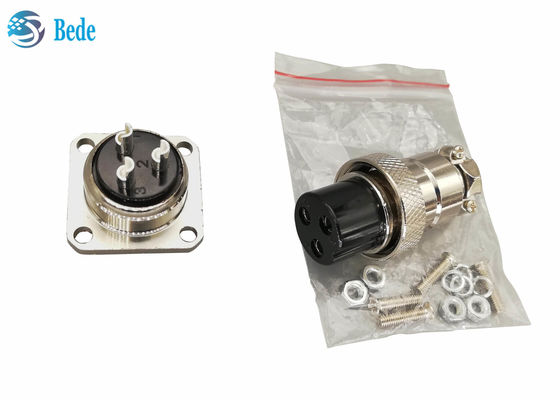

Panel Mount Connector Circular Connector With Square Flange M19 Male Female Set 2~9 Pins
Product structure
1. Silicone gasket, choose whether it contains the dust cover according to needs
2. Male end, installed on the panel, the mounting hole size is 19mm
3. Bakelite, female end,
4. Housing of female end, fixed wires and female end, zinc alloy materials,
5. Nut, for locking after connection
6. screws, nuts and washer, fix the male end to the panel, stainless steel materials
Electricity data
| Poles | 2pin | 3pin | 4pin | 5pin | 6pin | 7pin | 8pin | 9pin |
| Rated current | 10A | 7A | 7A | 7A | 5A | 5A | 5A | 5A |
| Rated voltage | 250V | 250V | 250V | 250V | 150V | 150V | 150V | 150V |
| Withstand voltage test | AC1500V *1min | |||||||
| Contact resistance | -50℃ ~ +70℃ | |||||||
Series products
We have series of GX20 products as follows, all of them are both male and female suits, it is also possible to buy only male and female, if you need, please contact our sales
