| วัสดุเปลือก: | โลหะผสมสังกะสีชุบนิกเกิล | วัสดุฉนวน: | เบ็กกาไลต์สีดำ |
|---|---|---|---|
| วัสดุพิน: | ทองเหลืองชุบเงิน | ลวดบังคับ: | Φ7.5มม |
| อุณหภูมิที่เหมาะสม: | -55~+75℃ | หมุด: | 2~6 |
| เน้น: | GX16 aviation plug 4 pin,aviation plug 4 pin 6 Pin,GX16 aviation connector 2 pin |
||

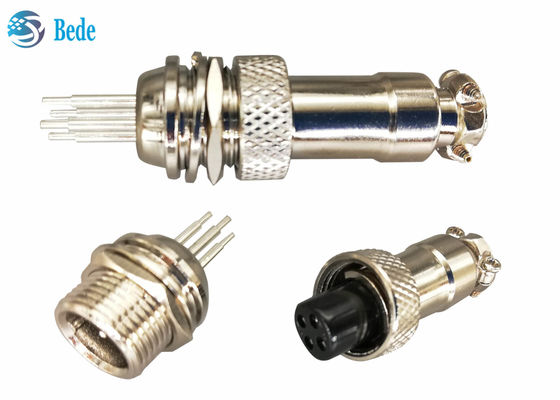

Male To Female Aviation Connector Kits GX16 PCB Welding Style 2 3 4 5 6 Pin

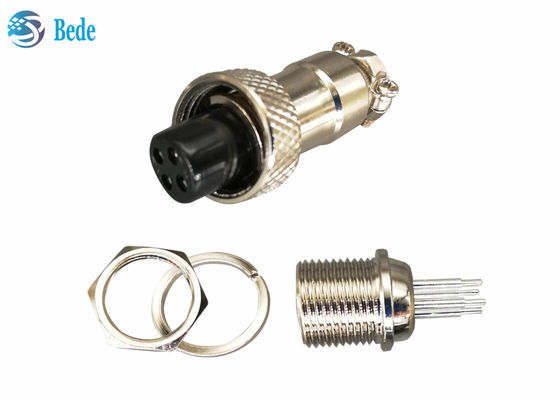

Product Structure
1.contact pins for PCB welding, brass material with silver plated
2. Male connector, rear mounting type, panel cutout 16mm
3.Washer and Nut for fixing male connector in panel
4.Bakelite insulator
5.Housing for female connector
Electrical date
| pins | 2 | 3 | 4 | 5 | 6 |
| Rated current | 7A | 7A | 5A | 5A | 4A |
| working voltage | 200V | 200V | 200V | 200V | 200V |
| Insulation resistance | 1500V | 1500V | 1500V | 1500V | 1500V |
| Contact resistance | 3mΩ | ||||
| Contact hole size | 2.45mm | 2.45mm | 2.45mm | 2mm | 1.15mm |
Materials and Surface Treatment
| Parts | material | surface treatment |
| Shell | Zinc alloy | nickel plated |
| insulator | bakelite | non |
| Contact pins | brass | silver plated |
All familier
About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
1.Panel mounting model-- front mounting
2.Cable docking model
3.Panel mounting model--Rear mounting
4.Panel mounting model with round flange
5.Panel mounting model with square flange
6.Panel mounting model with rhombus flange
7.PCB welding model with elbow pins
8.PCB welding model with straight pins
9.Panel mounting model with right angle--front mounting
10.Waterproof cable docking model
11.Waterproof panel mount model
12.Panel mounting model with right angle--rear mounting
