| สี: | สีแดงและสีขาว | แรงดันไฟฟ้าที่ได้รับการจัดอันดับ: | AC380V~415V |
|---|---|---|---|
| จัดอันดับปัจจุบัน: | 16แอมป์ | มาตรฐาน: | ไออีซี 60309 |
| ติดต่อวัสดุ: | ทองเหลือง | วัสดุที่อยู่อาศัย: | โพรพิลีน |
| เน้น: | Male Female Electrical Plug Socket IP44,3P+N 4 Pin Industrial Socket,Male Female Industrial Plug And Socket |
||

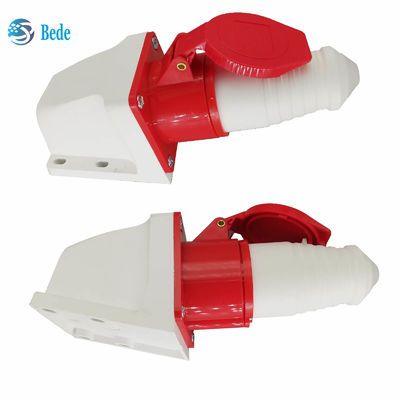

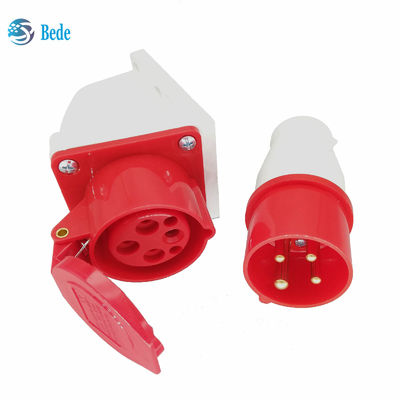

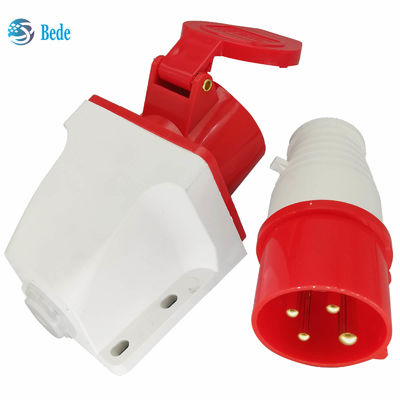

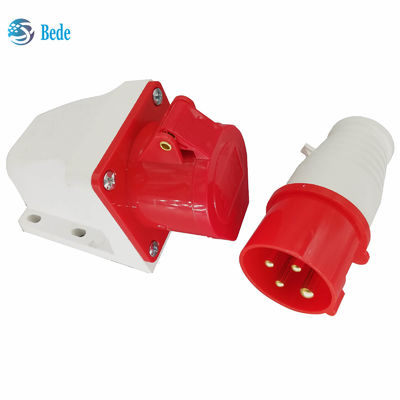

Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44
There are many types of IEC 60309 sockets, outlets, plugs, connectors and application inlets, they differ with respect to voltage, current, frequency rating and number of pins. Plugs have round pins, arranged in a circle, all plugs and sockets have a protective earth (PE) connection, the diameter of it is always 2 mm larger than the other pins, position of the earth pins vary between different types of plugs, can be regarded as a clock.
This page is a set of plugs and wall mounting type sockets, the sockets are generally mounted on the flat suiface, such as equipment (chassis) housing and the wall. Commonly used industries are: power distribution boxes, distribution cabinets, injection moulding machines, packaging machines, showrooms, etc, for power transmission and distribution.
Quickly details of the CEE plug and socket
| Pins | Rated voltage | phase | Rated current | housing material | pins materials | Earth position |
| 3p+E | 380~415V | 3 phase | 16 Amp | PP | Brass | 6h |
Replaceable CEE sockets
This plug also be used with panel mounting socket and coupler
