| วัสดุเปลือก: | PA 66(UL 94-V0) | ติดต่อวัสดุ: | ทองแดงชุบนิเกิล |
|---|---|---|---|
| เสา: | 2พิน, 3พิน, 4พิน, 5พิน | แรงดันไฟฟ้าที่ได้รับการจัดอันดับ: | กระแสตรง 450V |
| จัดอันดับปัจจุบัน: | 40เอ | อุณหภูมิที่ใช้บังคับ: | -40 ~ +105 ℃ |
| เน้น: | M25 Waterproof Cable Connectors,Screwless Waterproof Cable Connectors,water proof wire connector 5Pins |
||

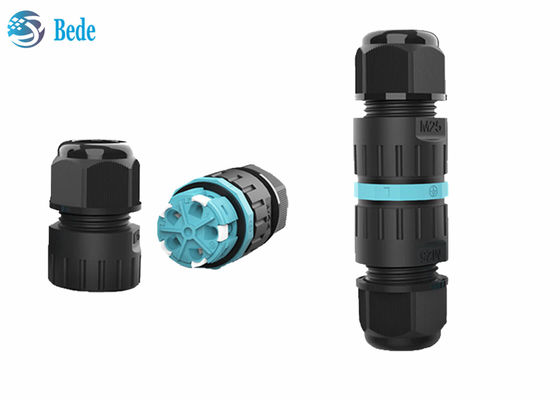

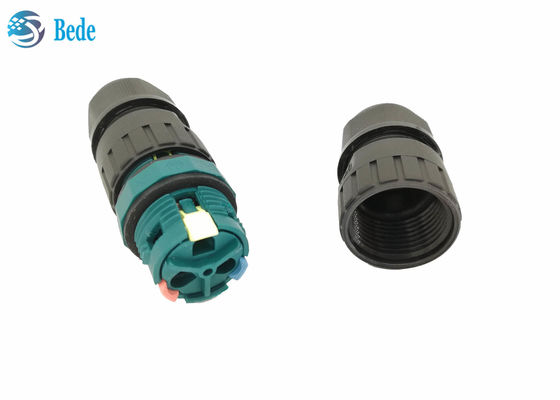

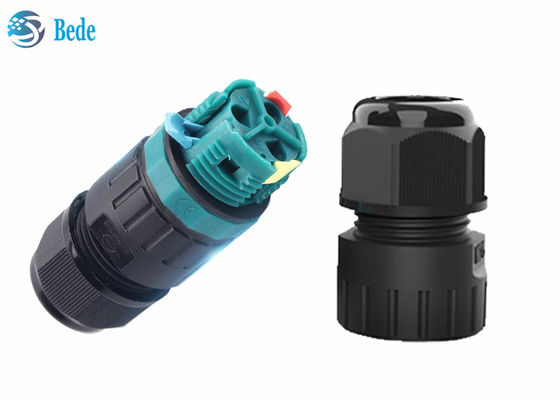

M25 Quick Wiring Screwless Waterproof Cable Connector 2 3 4 5 Pins 2 Channel 450V 40A

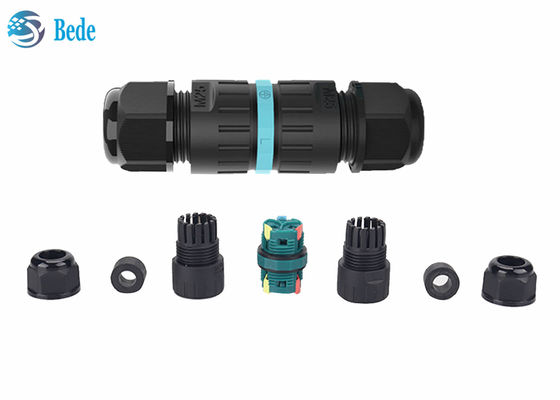

Product structure
1. Nut, it is very important for waterproofing, make sure to tighten them after wiring
2. Grip bushing, grip the cable together with the nut and the sealing ring

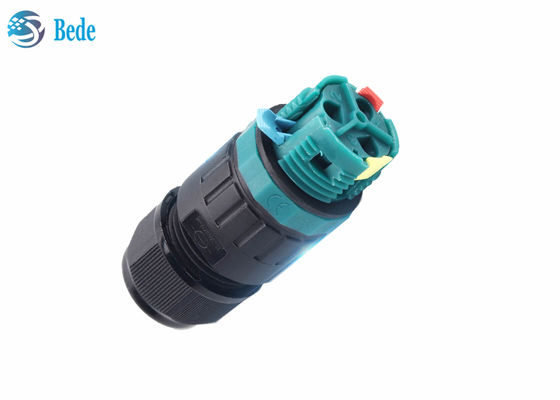

3.Quick connection terminal, no need for screws or screwdrivers, saving wiring time by 50%: pull up the crimping handle, insert the wire, press the crimping handle, done
4,O-ring, silicone, waterproof part between grip bushing and terminal block
5,Bushing,
6.Sealing Rings, silicone, 3 colors for your opinion, 3 sizes for different cable diameter.
Description
IP68 waterproof, Suitable for connection to the outdoor lighting, underfloor heating, solar photovoltaic, etc, its also a DIY tool for repairing and delaying electrical wiring indoors. The shell is made of PA66 material, flame retardant grade UL94-V0, it is suitable for the ambient temperature of -40~+105℃, so it can be used with confidence at any time
Electrical Data
| Rated voltage | Rated current | Wire Section | cable OD | ||
| 450V | 40A |
0.5mm2~6mm2(2.3.4 pins) 0.5mm2~2.5mm2 (5 pins) |
5~9mm / 9 ~12mm / 10~14mm | ||
